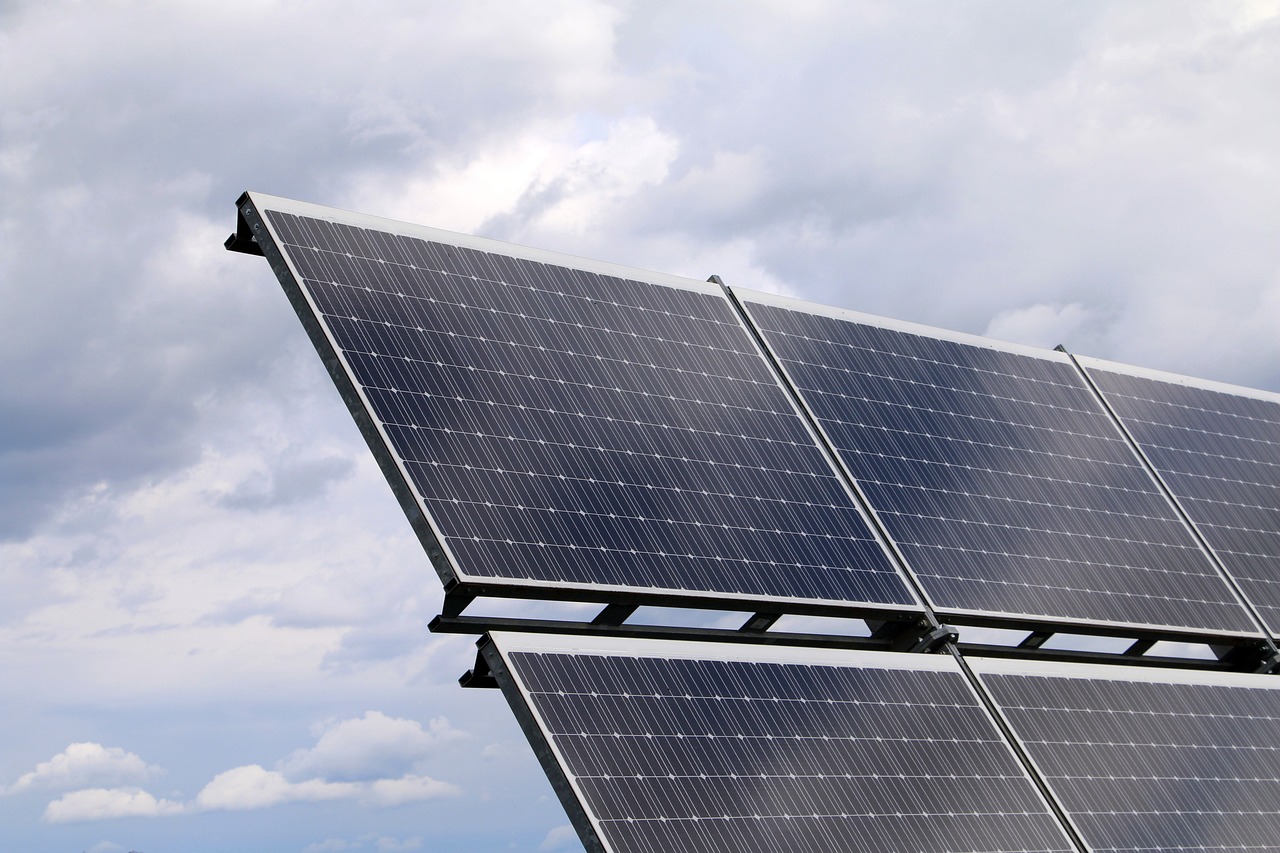

Solar Panel Structure

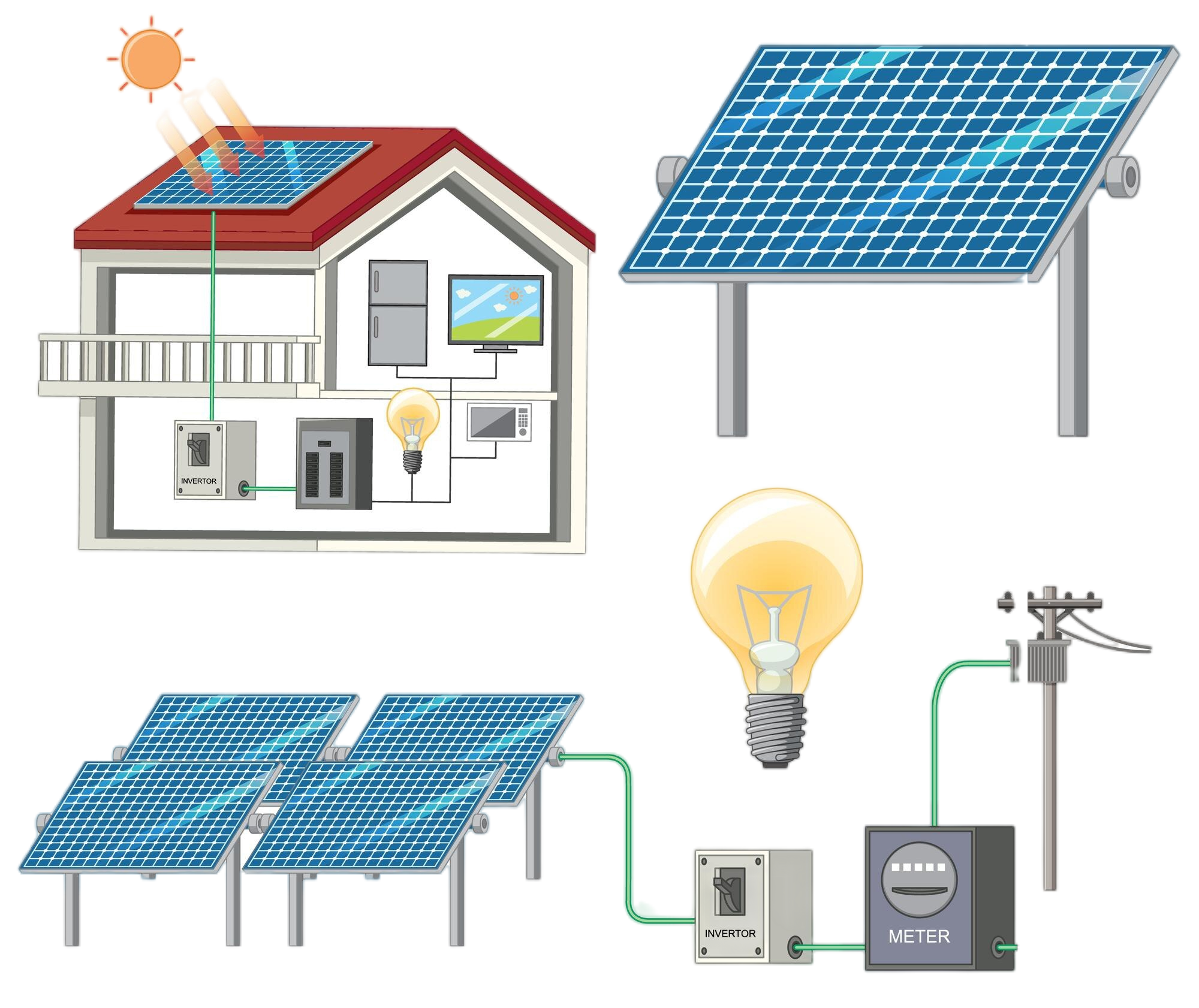

Solar mounting structures are the supporting pillars of PV modules installed to generate electricity from sunlight. These structures set the solar panels at an angle that can collect maximum solar radiation. Believing the fact that solar is the future, a large number of people are seeking more efficient and cost-effective solar gadgets to achieve the maximum benefit of the technology.
Solar mounting structures are one of those crucial components of a solar system that contribute significantly to increasing the output produced. This is because solar panels, the electricity-generating gadgets function favourably when the sunlight they absorb is shade free and active for long hours of the day. For this, the panels should be mounted at a critical tilt angle.
There are different types of solar mounting structure in the market, so it’s worth spending 10 minutes reading the complete information and selecting the ideal one that meet all your requirements.
Not all locations for solar system installation are the same. There are different applications, terrain and environmental references. Hence, an individual structure can not be favourable to every single customer. And this calls for the need for several types of solar mounting structures. So there are three types of solar mounting structures namely:
All these 3 types of solar mounting structure can further be classified into several categories. Below is the detailed information about all types of solar panel mounting structure.
In a rooftop mounting system, solar PV panels are installed on the roof of the building. It can either be any residential building or any commercial/industrial building. The rooftop mounting structure is further divided into two types which are-
Let’s know more about these types of rooftop mounting structures one by one.
Standard Rooftop Mounting Structure is the most common choice of many households. These are the most basic mounting structures that come in three different types.
Railed Mounting Structure: In a railed mounting structure, solar panels are fixed on several rails through a set of clamps. The rails are made of aluminum and attach to your roof by using a drill and nut-bolts.
Rail-less/Ballasted Mounting System: Rail less mounting structure is also known as ballasted mounting structure. In this structure, solar panels are directly fixed with the roof by using hardware. This is a cost effective and easy way to install solar panels on roofs.
Shared Rail Mounting System: Shared rail mounting system is very similar to railed system. In the railed mounting system, 4 rails are used to fix 2 rows of solar panel. While in the shared rail system only 3 rails will be used to mount 2 rows. The middle rail will be shared by both the rows.
In elevated solar panel structure, solar panels are installed at a height of 10 to 15 ft. There will be a little room type space beneath the mounting structure. It is also the most common type of mounting structure.
The cost of the solar mounting structure accounts for around 9-15 per cent of the total solar power plant cost. The exact percentage depends upon the size of the solar system. In smaller ones, it is 9% while it increases to 15% as the size of the solar system increases. The detailed prices of rooftop mounting structure is mentioned below.
| Solar System Capacity | Selling Price | Price/ Watt |
|---|---|---|
| 1kW Solar System | Rs.5,000 | Rs.5 |
| 2kW Solar System | Rs.10,000 | Rs.5 |
| 3kW Solar System | Rs.15,000 | Rs.5 |
| 4kW Solar System | Rs.20,000 | Rs.5 |
| 5kW Solar System | Rs.25,000 | Rs.5 |
| 6kW Solar System | Rs.27,000 | Rs.4.5 |
| 8kW Solar System | Rs.36,000 | Rs.4.5 |
| 10kW Solar System | Rs.45,000 | Rs.4.5 |
| 15kW Solar System | Rs.60,000 | Rs.4 |
| 20kW Solar System | Rs.80,000 | Rs.4 |
| 25kW Solar System | Rs.1,00,000 | Rs.4 |
| 30kW Solar System | Rs.1,20,000 | Rs.4 |
| 50kW Solar System | Rs.1,75,000 | Rs.3.5 |
| 100kW Solar System | Rs.3,50,000 | Rs.3.5 |
In tin shed solar mounting system, the solar panels are fixed on the shed of your house.
Tin shed solar structures are the cheapest of all types of solar mounting structures. The prices of tin shed solar structures are listed below. You can check the best price here.
| Solar System Capacity | Selling Price | Price/ Watt |
|---|---|---|
| 1kW Solar System | Rs.3,500 | Rs.3.5 |
| 2kW Solar System | Rs.7,000 | Rs.3.5 |
| 3kW Solar System | Rs.10,500 | Rs.3.5 |
| 4kW Solar System | Rs.14,000 | Rs.3.5 |
| 5kW Solar System | Rs.17,500 | Rs.3.5 |
| 6kW Solar System | Rs.18,000 | Rs.3 |
| 8kW Solar System | Rs.24,000 | Rs.3 |
| 10kW Solar System | Rs.30,000 | Rs.3 |
| 15kW Solar System | Rs.45,000 | Rs.3 |
| 20kW Solar System | Rs.60,000 | Rs.3 |
| 25kW Solar System | Rs.75,000 | Rs.3 |
| 30kW Solar System | Rs.90,000 | Rs.3 |
| 50kW Solar System | Rs.1,25,000 | Rs.2.5 |
| 100kW Solar System | Rs.2,50,000 | Rs.2.5 |
In a ground mounting solar system, the solar panels are installed on ground. The land where the solar structure is getting installed could be parks, playgrounds, agricultural land, etc. There are three types of ground mounting solar structure as mentioned below
Foundation Mounting Structure: This is the most common type of ground mounting structure. In this system, land will be excavated to put the vertical pipes surrounded by a concrete foundation. The land is strong enough to hold the mounting structure or not, it finalizes after the site analysis by the solar experts.
Ballasted Mounting Structure: In ballasted solar mounting structures, precast concrete block anchors will be used. Your solar structure will be fixed by using cementing materials.

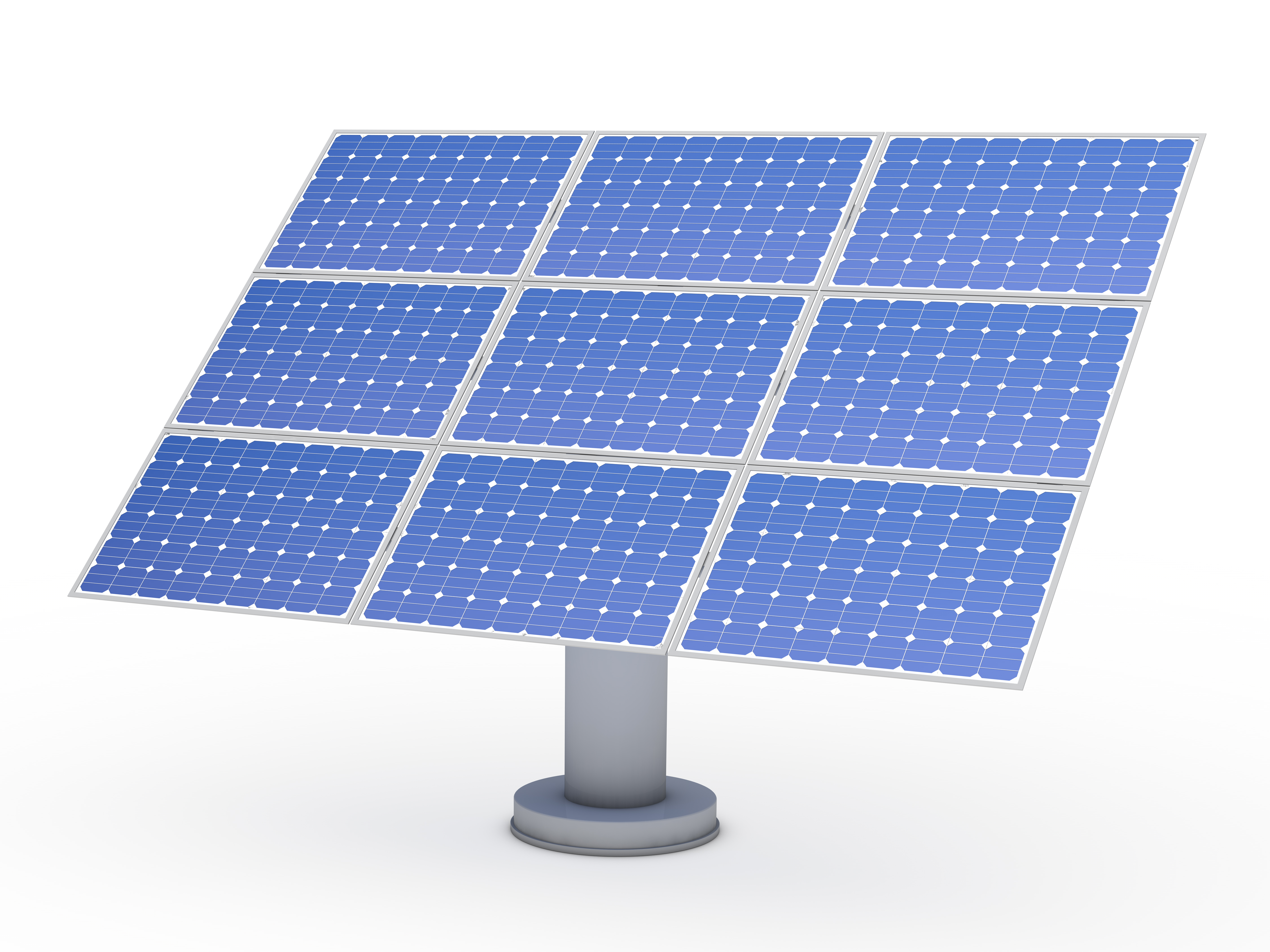

Pole Mounting Structure: Ideal for a small solar system, especially for residential purposes, the pole mounting structure functions on a simple foundation that is pole:
Since a ground-mounted solar panel stand supports the entire solar system for years, its quality should be chosen wisely. And quality depends largely on brand and price. To help you choose the best, here we have mentioned the price list of ground-mounted structures.
| Solar System Capacity | Selling Price | Price/ Watt |
|---|---|---|
| 50kW Solar System | Rs.3,00,000 | Rs.6 |
| 100kW Solar System | Rs.6,00,000 | Rs.6 |
| 200kW Solar System | Rs.10,00,000 | Rs.5 |
| 300kW Solar System | Rs.15,,00000 | Rs.5 |
| 400kW Solar System | Rs.20,00,000 | Rs.5 |
| 500kW Solar System | Rs.25,00,000 | Rs.5 |
| 1MW Solar System | Rs.45,00,000 | Rs.4.5 |
| 1MW+ Solar System | Accordingly | Rs.4.5 |
Mounting structures play an important role in determining the overall efficiency of the solar system, both rooftop and utility. They lift the PV modules at suitable angles and assure maximum energy generation by tilting the solar panels.
Mounting structures bear the entire weight of the solar panels. They help the solar panels to rest comfortably and work productively. Solar mounting structures protect the solar panels from being damaged.
Solar mounting structures are strong and durable to withstand extreme weather conditions. They are responsible for providing the solar system with an increased life expectancy.
They are available in a variety of materialistic forms including steel, aluminium, etc. The material they are made of assures you that they are highly durable, corrosion-resistant and rust-free.
Mounting structure technologies are developing rapidly. As a result, there is a reduction in the cost of the structure. Also, the installation process has become easier and faster. Besides, with technological innovations, the mounting structures are becoming more durable and productive.
We are one of India’s oldest and fastest growing manufacturers of solar panel mounting structures. We guarantee the best solar panel structure at the most affordable price. We have a professionally managed unit that manufactures and implements sheet metal products, and our monthly capacity for sheet metal production is approximately 650 to 700 mt. We specialize in the supply of sheet metal products for the solar power and solar water heater industries.
So, for buying any type or capacity solar mounting structure, Contact Us. +91 9665428289
